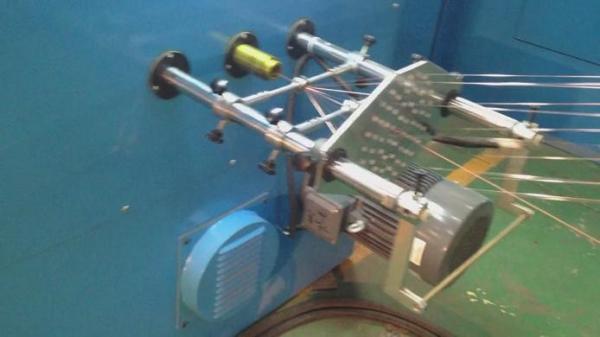

FUCHUAN 19 Pcs Nickel Wire Bunching Machine / Twisting Machine 0.19~0.303

Quick Details:

Fuchuan FC-1+6+12 bunching machine 19pcs nickel wires φ0.19mm - φ0.303mm in one time

Characteristics:

(1.1). It is the latest developed machine.

(1.2). This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than

tube machine for the 1+6+12 conductors normal bunching)

(1.3). Low power, small floor place, low noise and other merits.

Specifications:

Equipment models	1+6+12(160bobbin)	FC 1+6+12(250bobbin)
Twisting usage	It is applicable to bunching 19pcs copper wires in one time
Single wire dia(mm)	φ0.19-φ0.303
Stranding section area (mm²)	0.38-1.5mm²
Pitch(mm)	6.3-52.3(24zones)
Direction of lay	Optional for right or left
Pay off bobbin size	DIN 160	DIN 250
Max rotating speed	2600(4000twist)	2400(4000twist)
Pay off type	Mechanical friction	Magnetic tension
Pay off machine power	5.5KW	7.5KW
Take up bobbin size	φ500φ127375	φ500φ127375
Pay off Inverter power	11KW	11KW
Main motor power	11KW	11KW
Take up inverter power	11KW	11KW
Tension control method	Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	1.2kgf	1.2kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	10000L2500W1650H	10000L2500W1650H

Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
