Wire Extrusion Machine , Power Wire Insulated Sheathing For Wire Dia 5.0-20mm

Product Categories

Kunshan Fuchuan Electrical and Mechanical Co.,ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Wire Extrusion Machine Power Wire Insulated Sheathing For Wire Dia 5020mm
Brand: Fuchuan
Price: 1 USD

Add to Cart

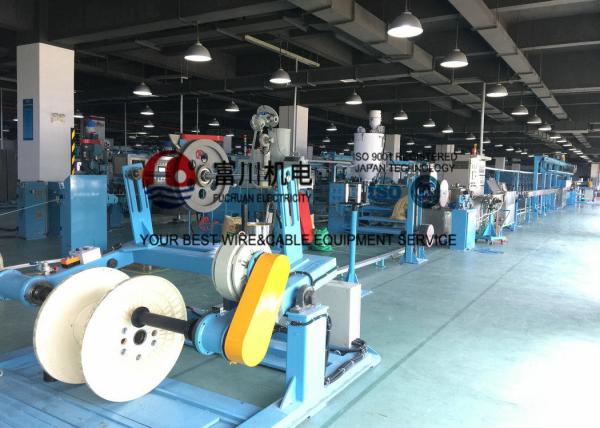

Extruder Machine Power Wire Insulated Sheathing For Wire Dia 5.0-20mm

Quick detail :

1)Power wire extruder line, electrical wire

2)Apply for producing electrical wire, power wire, insulated sheathing and other wire&cable.

Specification:

Model	FC-40	FC-50		FC-60	FC-70	FC-80	FC-90
Screw Diameter	Φ40	Φ50	Φ60		Φ70	Φ80	Φ90
Screw L/D Ratio	26:1	26:1	26:1		26:1	25:1	25:1
Feed wire type	Active pay off or tension pay off
Max speed(m/min)	300	400	500		500	200	200
Extrusion output	40	60	100		140	200	250
Power for main machine(KW)	11	15	18.5		22	30	37
Wire diameter	Φ0.5-3.0	Φ0.6-4.0	Φ0.8-8.0		Φ1.5-12	Φ5.0-20	Φ6.0-25
Max accumulator length(m)	220
Accumulator	Horizonal accumulator
Cooling channel	Folding W type/U type
Capstan diameter	Φ340	Φ410	Φ410		Φ510	Double wheel capstan or caterpillar capstan
Capstan power	2.2KW	3.7KW	3.7KW		5.5KW	5.5KW	7.5KW
Take up power	2.2KW	3.7KW	5.5KW		5.5KW	7.5KW	7.5KW
Take up type	Double shaft take-up or shaftless take up

Other information:

active pay off or passive pay off

Terms of payment:

FOB Shanghai / Ningbo

Payment terms:

30% down payment,70% before shipment

Delivery time:

45days after receive the downpayment

Origin:

China

Minimum order:

1set

Package:

With container
