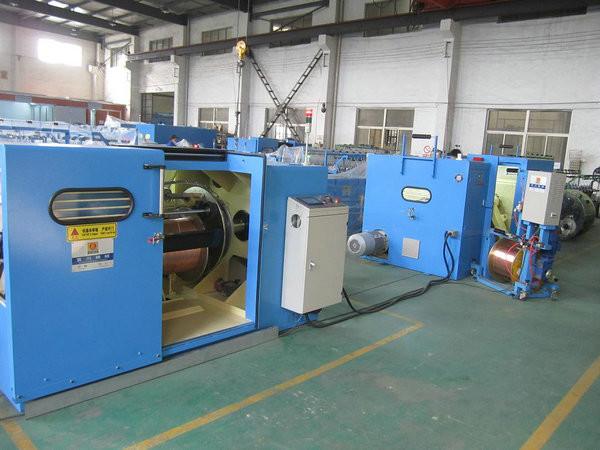

    19 Pcs Flexible wire twister machine , Tinned Wire Bunching Machine

    Ask Lasest Price
    Brand Name : FUCHUAN
    Model Number : FC-1+6(630F)+12-2
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 500 set per year
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    19 Pcs Flexible wire twister machine , Tinned Wire Bunching Machine

    19 Pcs Flexible wire twister machine , Tinned Wire Bunching Machine


    Quick Details:


    Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time


    a. It is the latest developed machine.

    b. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times

    than tube machine for the 1+6+12 conductors normal bunching)

    c. low power, small floor place, low noise and other merits.


    Characteristics:


    New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.


    Series for 1+6+12 bunching machine

    Characteristics:: New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.


    Equipment models1+6+12(200 and 250bobbin)1+6+12(630bobbin)
    Twisting usageApply for bunching 19pcs copper wires synchronous
    Single wire dia(mm)0.16~0.64
    Stranding section area (mm²)0.38~6.0
    Pitch(mm)11.6-100(34classes)
    Direction of layFree to right or left
    Pay-off bobbin size8inch,9inchOD630 ID125 H475
    Pay-off typeMechanical frictionMagnetic powder tension
    Take-up bobbin size

    OD630 ID127 H475 or OD630 ID56 H475

    (Customized)

    OD630 ID127 H475 or OD630 ID56 H475

    (Customized)

    Max rotating speed2000rpm(4000twist)2000rpm(4000twist)
    Pay-off machine power5.5KW7.5KW
    Pay-off Inverter Power7.5KW7.5KW
    Take-up motor power7.5KW7.5KW
    Take-up Inverter Power7.5KW7.5KW
    Tension controlTouch screen+PLC+magnetic powder clutch, ensure the constant tension from empty to full bobbin
    Magnetic powder clutch5kgf5kgf
    Protection

    automatically brake/stop 1)wire inside and outside is broken

    2)the preset length is arrived

    Brake modeElectromagnetic brake
    Traversing methodRolling wire with ring drive units, winding pitch and breadth are adjustable
    OperationTouch screen
    Dimension(mm)10000L 2500W 1650H10000L 2500W 1650H

    Other Information


    FOB SHANGHAI
    Payment

    TT, L/C
    Delivery

    FOB Shanghai/Ningbo
    Origin

    China
    Minimum Order

    1 set
    Package
    with container
