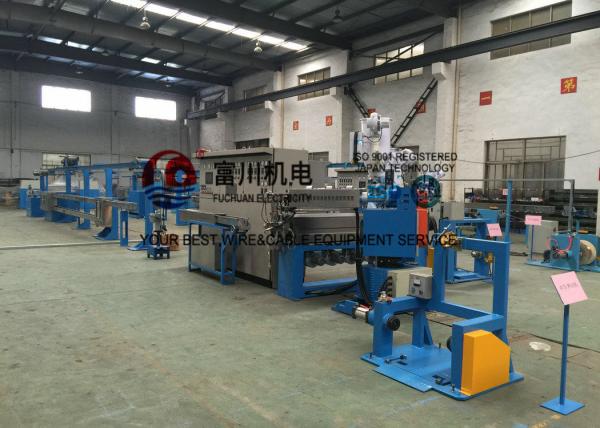

Fuchuan Plastic Insulating Wire Extruder Machine With Screw Dia 60mm

Quick Details:

Automobile wire high speed extruder line

Apply for extruding the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed.

Characteristics:

Component:

Lut barrel up pay off machine,straighten ,main machine,injection machine,control case,water tank,double

wheel capstan,accumulator,double shaft take up and other equipments.

The choice equipments:

copper wire pre-heater,printer,OD measuring instrument,spark tester and PLC control or IPC operation. Save,display and revise technology parameter,remote control.

Specification:

1. Mechanical model: FC-60+35

2. Pay off type: 500-630active pay off or lut barrel up pay off

3. Screw dia: 60

4. Screw ratio: 25:1

5. Extrusion output: 100kg/h

6. Revolving speed of screw: max 100rpm

7. Main power: 15kw

8. Wire diameter: 0.8-5.0mm

9. Cooling device: monolayer/double layer model U

10. Take up type:1246 automatic coiling machine,the plum blossom falls barrel machine,shaft type.
