Equipment models

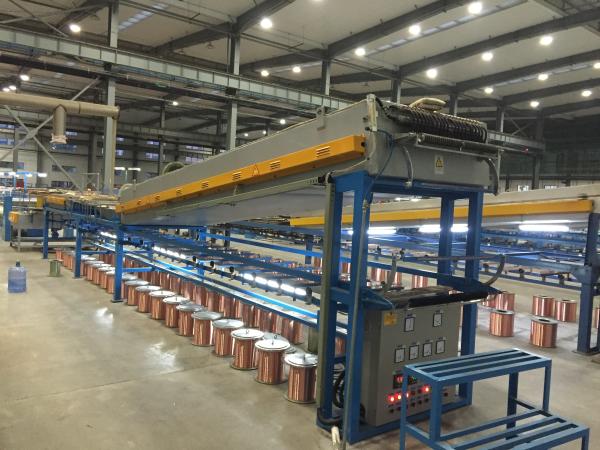

FC-T40-1

Twisting usage

It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire.

Single wire dia(mm)

φ0.08-φ0.25 or φ0.15-φ0.64mm

Max numbers of inlet wire

40pcs

Linear speed

Max:300m/min

Pay off method

Brush pay off

Pay off bobbin model

φ300bobbin

Annealing furnace length

3.5m or 6m

Annealing method

Tube annealing

Annealing protection method

Water seal protection

Tinned method

Hot dip

Capstan control method

Inverter+ motor control or adopt stepless speed regulation motor

Equipment total power

68kw

Take up control

Take up is voltage regulator control the moment motor

Take up bobbin size

5inch,8inch bobbin or 5inch,8inch,10inch bobbin

Traverse control method

Stepless speed regulation motor+ turbine gear box control toothrow traverse

Installation size

24000L*2200W*2100H
