    High Speed Big Wire Tinning Machine 3.0M Annealing Furnace Length

    Ask Lasest Price
    Brand Name : FUCHUAN
    Model Number : FC-T4
    Certification : ISO9001 2008
    Price : USD41000
    Payment Terms : T/T
    Delivery Time : 8weeks
    • Product Details
    • Company Profile

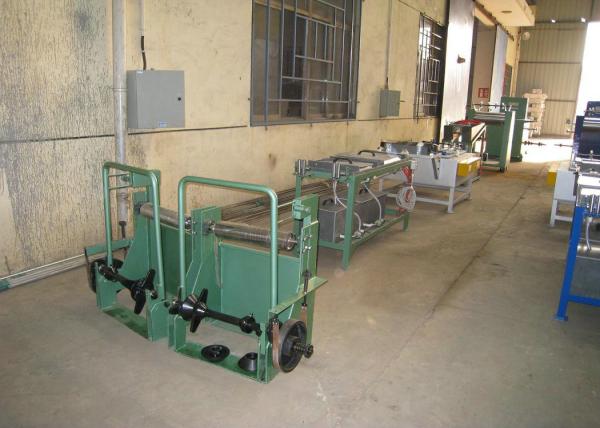

    High Speed Big Wire Tinning Machine 3.0M Annealing Furnace Length

    High Speed Big Wire Tinning Machine 3.0M Annealing Furnace Length


    Quick detail:


    Ultra-fine wire high speed tinning machine

    The technology of this machine is brought from Japan and put in production in Jiangsu.


    Characteristics:


    Easy to operate, good annealing heat insulation, save power, adopt nitrogen or steam protection, have individual meter counter for each take up bobbin, stop automatically achieve the preset meter. It may realize ultra-fine annealing tin and achieve industry-leading level.


    Specification:


    Equipment models

    FC-T4

    Twisting usage

    It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire.

    Single wire dia(mm)

    φ0.68-φ2.52 mm

    Max numbers of inlet wire

    4pcs

    Linear speed

    Max:150m/min

    Pay off method

    Brush pay off

    Pay off bobbin model

    φ500bobbin

    Annealing furnace length

    3.0m

    Annealing method

    Tube annealing

    Annealing protection method

    Nitrogen protection or vapour protection

    Tinned method

    Hot dip

    Capstan control method

    Inverter+ motor control or adopt stepless speed regulation motor

    Equipment total power

    3.7kw

    Take up control

    Take up is voltage regulator control the moment motor

    Take up bobbin size

    400/500 bobbin

    Traverse control method

    Inverter+reducer motor control ball screw traversing,photoelectric induction reversing

    Installation size

    20000L*1250W*1850H


    Other Information


    FOB SHANGHAI
    Payment

    TT, L/C
    Delivery

    FOB Shanghai/Ningbo
    Origin

    China
    Minimum Order

    1 set
    Package
    with container
