FUCHUAN Double Twist Bunching Machine , Copper Wire Bunching Machine

Ask Lasest Price
Brand Name :	Fuchuan
Model Number :	FC-650B-5
Certification :	CE
Price :	USD27650
Supply Ability :	500SETS/MONTH
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

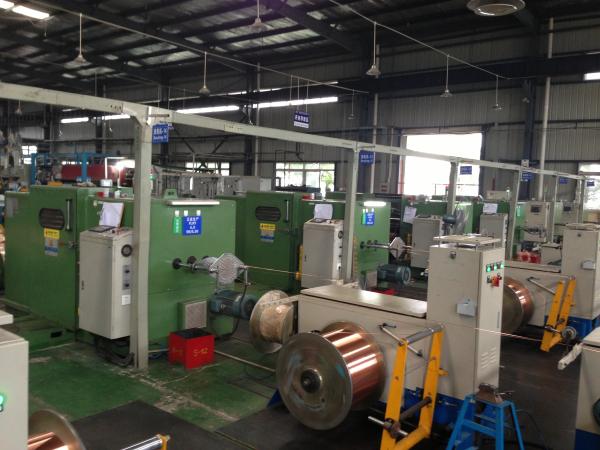

FUCHUAN Double Twist Bunching Machine , Copper Wire Bunching Machine

FUCHUAN Double Twist Bunching Machine , Copper Wire Bunching Machine

Quick Details:

Japan Technology, product in China

FUCHUAN® Series Model B normal wire high speed bunching machine and double twist bunching machine.

New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.

Characteristics:

With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, Only need to change the capstan wheel to change the pitch. Easy to operate.The machine is driven by synchronization strap.

Specifications:

Equipment models	FC-650B-5
Twisting usage	It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)	φ0.15-φ1.04
Stranding section area (mm²)	0.35-6.0
Core wire single wire dia	φ0.5-φ3.0
Core wire stranding outer dia	φ1.0-φ6.0
Pitch(mm)	11.6-100(34zones)
Direction of lay	Optional for right or left
Outer diaboreouter width	φ630φ56475 φ630φ127475
Max rotating speed	2000(4000twist)
Main motor power	7.5KW
Inverter power	7.5KW
Tension control method	Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	5kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable

Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
