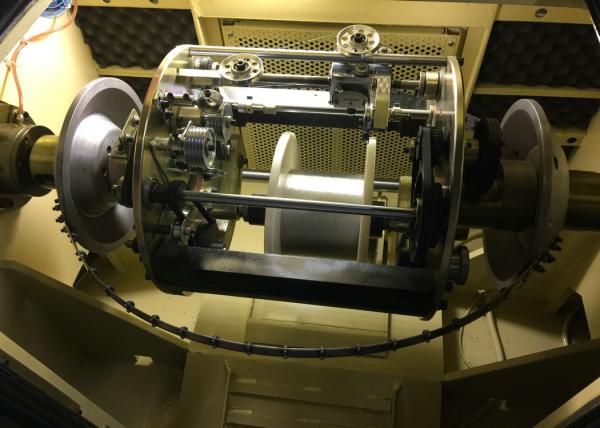

4000rpm Alloy Copper Wire Twisting Machine , S Lay Sky Blue Wire
Stranding Machine
Quick Details:
With high rotation speed,with constant tension from empty bobbin to
full bobbin, with superior quality
for twist wire,it can realize bunching instead of twisting to match
up to FC-100 active back twist pay off machine. And meet
requirements of customer to twist wire of small section area, the
machine is driven by
synchronization strap,only need to change the capstan wheel to
change the pitch,easy to operate.
Characteristics:
1. Single wire dia: φ 0.03-φ0.12mm
2. Stranding section area: 0.0049-0.079mm²
3. Pitch: 0.8-5mm
4. Direction of lay: S
5. Take up bobbin: φ250*φ30*200mm
6. Max rotating speed: 4000(8000twist)
7. Main motor power: 3.7kw
8. Inverter power: 3.7kw
9. Tension control method: touch screen+PLC+magnetic powder
clutch,it may ensure the constant tension from empty bobbin to full
bobbin.
10. Operation mode: touch screen
Specifications:
| Equipment Models | FC-200B | FC-250B | FC-300B | FC-400B |
| Twisting Usage | Apply for the bunching of aerospace, medical instrument,
cellphone,notebook PC and ultra fine conductor(above seven pcs of
alloy wires, tinned wires, silver jacketed wires and enamelled
wires). |
| Single Wire Dia(mm) | 0.016～0.08 | 0.03～0.18 | 0.05～0.28 | 0.05～0.32 |
| Stranding Section Area(mm²) | 0.0014～0.035 | 0.0049～0.3 | 0.0137～0.45 | 0.0137～1.0 |
| Pitch(mm) | 0.8～4.0(14 classes) | 0.8~10.8(24classes) | 1.6～21.6(24classes) | 3.1～33.3(24classes) |
| Direction of Lay | Free to right or left |
Take-up Bobbin(mm) Outer dia*bore*outer width | 200*31*135 | 300*30*185 | 250*30*185 300*30*185 | 300*30*185 400*56*300 |
| Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) | 3500rpm(7000tpm) |
| Main Motor Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW |
| Inverter Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW |
| Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant
tension from empty to full bobbin |
| Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf | 0.6kgf |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived |
| Brake Mode | Electromagnetic brake |
| Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are
adjustable |
| Operation Mode | Touch Screen Operation |
| Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2300*1100*1330 | 2850*1150*1350 |
Other Information
FOB SHANGHAI
Payment
TT, L/C
Delivery
FOB Shanghai/Ningbo
Origin
China
Minimum Order
1 set
Package
with container
