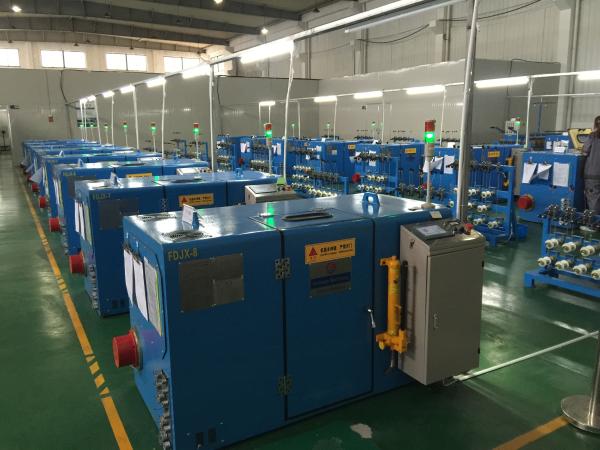

3.7kw Conductor Tinned Wire Buncher Machine 0.8mm - 10.8mm Pitch Area

3.7kw Conductor Tinned Wire Buncher Machine 0.8mm - 10.8mm Pitch Area

Series for Model B ultra-fine high speed bunching machine

The technology of this machine is brought from Japan and put in production in JiangSu

Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to FC-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.

Equipment models	FC-250B-1
Twisting usage	It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)	φ0.05-φ0.28
Stranding section area (mm²)	0.0137-0.45
Pitch(mm)	0.8-10.8(24zones)
Direction of lay	Optional for right or left
Outer diaboreouter width	φ300φ30185 φ250φ30185
Max rotating speed	3500(7000twist)
Main motor power	3.7KW
Inverter power	3.7KW
Tension control method	Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	0.6kgf
Protection	Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units,winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	2300L1100w1330H
