500M / Min Extrusion Line , Photovoltaic Movable Plastic Injection Machine

Characteristics:

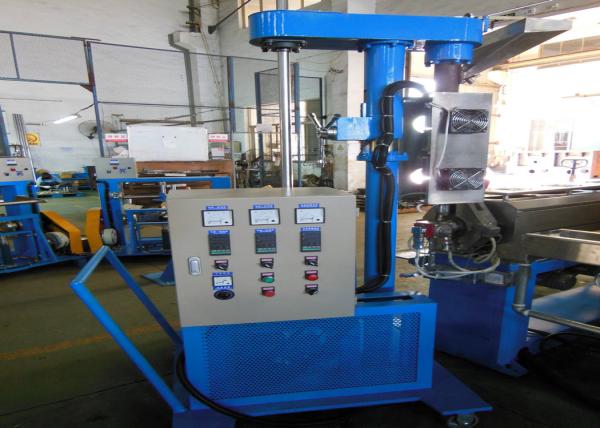

FC-35 movable injection machine:

1. Motive: 3.7kw AC motor

2. Screw: 38CrMoAlA diameter 40,ratio:18:1

3. Screw ratating speed: 10-51r/min

4. Elec-heating ,with voltage 220V. screw tubes 2zones, cast Al heater, each heating power 2*550W.

5. Cooling type: fan 2sets,each set power 20w. nose cooling naturally

6. Lifting type: manual lifting

7. Color: sky blue

8. Head: PVC,non-halgon material

Fuchuan forever insist on the operation principle of “customers first, sincere services and common development”, providing the highest quality products as well as perfect service to customers.

Sincerely invite the manufacturers to visit, inspect and guide our company.

Fuchuan would like to be your most sincere partner!
