Flexible Wire Extruder Machine , Sheathed Wire Cable Extrusion Machine

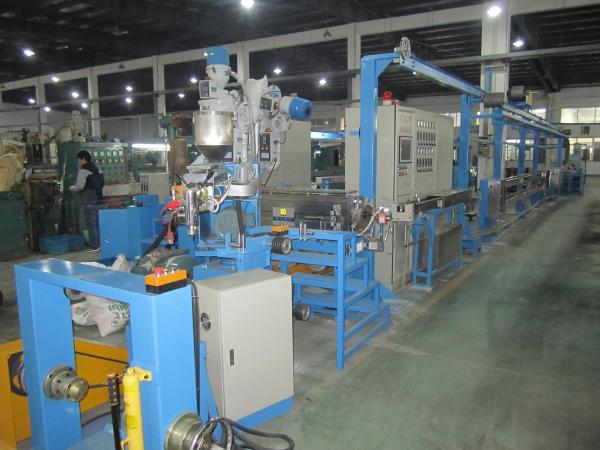

Automobile wire high speed extruder line

Usage:

It is applied to extrude the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed.

Device structure:

Lut barrel up pay off machine,straighten ,main machine,injection machine,control case,water tank,double

wheel capstan,accumulator,double shaft take up and other equipments. The choice equipments: copper wire pre-heater,printer,OD measuring instrument,spark tester and PLC control or IPC operation. Save,display and revise technology parameter,remote control.

1. Mechanical model: FC-70+35

2. Pay off type: 500-630active pay off or lut barrel up pay off

3. Screw dia: 80

4. Screw ratio: 26:1

5. Revolving speed of screw: max 100rpm

6. Extrusion output: 150kg/h

7. Main power: 22kw

8. Wire diameter: 1.0-6.0mm

9. Cooling device: monolayer/double layer model U

10. Take up type:1246 automatic coiling machine,the plum blossom falls barrel machine,shaft type.
