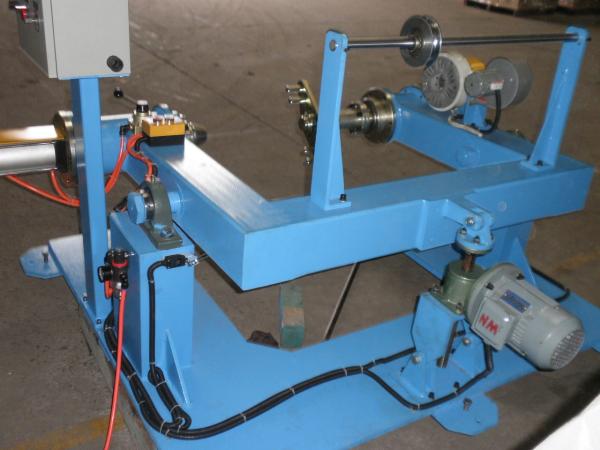

Pneumatic Fasten Wire Twisting Machine Shaftless Bobbins Active Pay Off Machine

Merits: It is constant tension,non-twist wire single bobbin pay off machine.Applied to single wire and multiple drawing wires pay off. Match up with the high speed bunching machine,easy to operate,save more floor area.

Model: FC-800

Usage: Applied to doubling wire pay off, match up with the high speed bunching machine.

Single wire diameter: dia0.20mm-0.85mm

Pay off bobbin: PND800

Motor power:2.2KW

Tension control: Pneumatic tension

Wire speed: It is feedback the singnal to the inverter to control the rotating speed of motor by displacement sensor.

Control type: Synchronize with the main machine

Protection: Machine is stopped when wire is broken.

Fasten type: Pneumatic fasten
