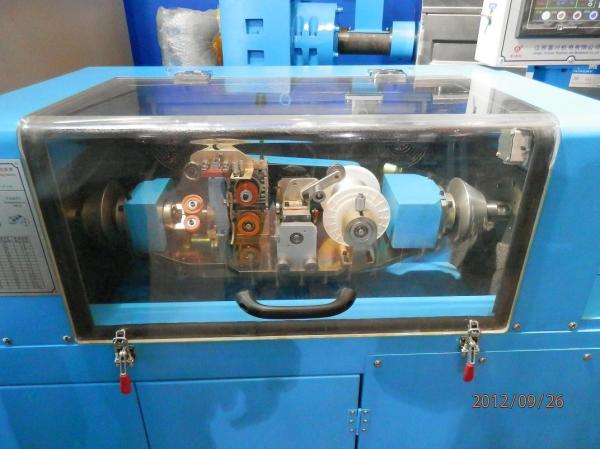

Back Twist Copper Wire Bunching Machine , 3.7Kw Alloy Wire Twister Machine

Series for back-twist high speed bunching machine

Merits:With high rotation speed,with constant tension from empty bobbin to full bobbin,with superior

quality for twist wire,it can realize bunching instead of twisting to match up FC-100 active back-twist

pay off machine.And meet requirements of customer to twist wire of small section area,the machine

is driven by synchronization strap,only need to change capstan wheel to change the pitch,easy

to operate.

Model: FC-250C

Usage: It is applied to bunch above 5 pcs alloy wire.Back-twist function,finished wire is straighten

naturally,not twist.

1. Direction of lay: S twist

2. Outer diameter of bobbin: dia250mm*30mm*200mm

3. Max rotating speed: 4000(8000twist)

4. Main motor power:3.7kw

5. Inverter power: 3.7kw

6. Tension control method: touch screen+PLC+magnetic powder clutch,it may ensure the constant tension

from empty bobbin to full bobbin.

7. Magnetic powder clutch:0.2kgf

8. Protection: machine will automatically brake when wire inside and outside is broken,the machine will

automatically stop when the preset length is arrived.

9. Brake mode: electromagnetic brake

10. Traversing method: Rolling ring drive units,winding pitch and breadth are adjustable.

11. Operation mode: touch screen operation

12. Dimension: 2000L*800W*2000H
